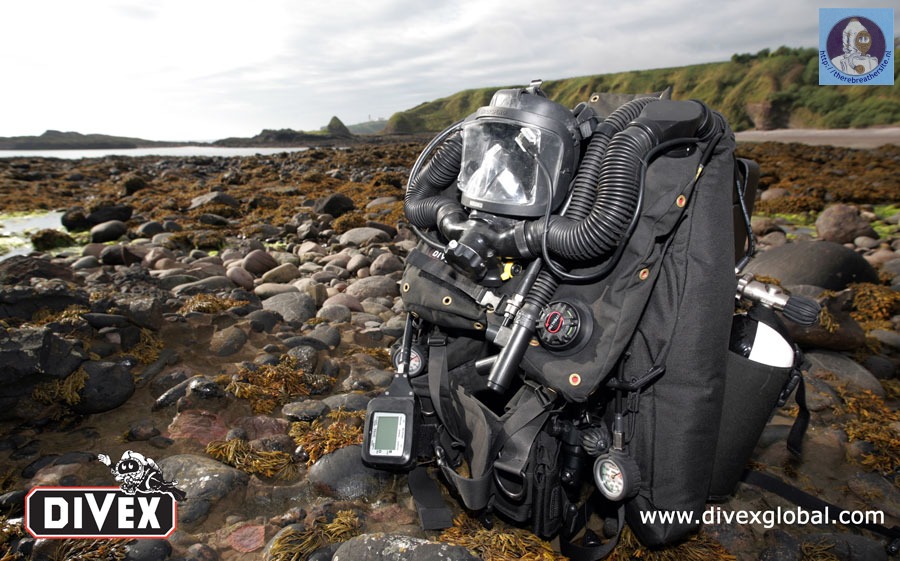

A state-of-the-art compact and highly sophisticated electronically controlled rebreather, the CDLSE is capable of being used in multi-

mission diving profiles. It has been developed utilising modern materials and new technologies. Its extremely low WoB (Work of

Breathing) surpasses international standards, and crucially to mine clearance diving operations, surpasses all NATO non-magnetic

and low acoustic standards.

The CDLSE is an electronic controlled closed circuit rebreather capable to use air as a diluent gas up to 60 meters and Heliox and

Trimix up to 120 meter. The unit is tested for military standards, but also has approval of the EN-14343 and has CE marking.

The unit is tested for the highest requirements regarding magnetic profile and fully meets the requirements of STANAG 2897 Class A.

Oxygen addition is controlled by a 3 cell logic controller that calibrates in 100% Oxygen.

Scrubber performance is 4-6 hours.

Stealth CDLSE is a modular system that can be tailored to suit mission requirements by using a combination of the following

 accessories:

• Simple harness

• Bite mouthpiece and half mask

• Full face mask

• Buoyancy compensation device with integral weight pockets

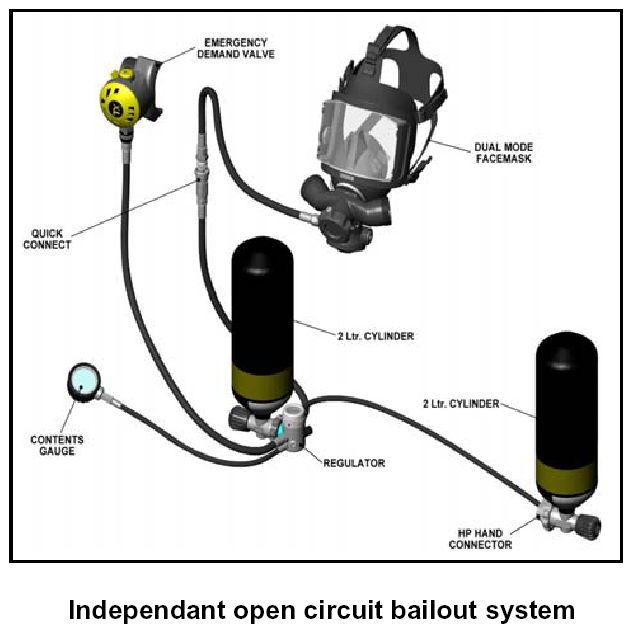

• Open circuit bailout option for both bite mouthpiece and full face mask

• Full face dual mode mask, permitting breathing  from closed and open circuit gas supply


Stealth CDLSE System Features:

• Fully closed circuit electronically controlled constant oxygen partial pressure

• Extremely low breathing resistance in all body positions

• The duration of Stealth CDLSE is independent of depth

• 20 hr re-chargeable external waterproof battery

• 10 hr re-chargeable emergency internal reserve battery

• Vacuum sealed electronics unit

• Water tolerant breathing circuit design reducing the likelihood of a ‘caustic cocktail’

• Multiple open-circuit bail-out options available

• Oxygen sensors and electronic circuitry protected from moisture ingress

• Standard cylinder charging pressures 300 bar

• A discreet head mounted light sensitive LED indicating equipment status

• Advanced back-light LCD display module presenting detailed information on the life control system

• Automatic diluent gas addition allowing hands free operation on descent (ADV)

• Dual bag counter lung design

• DIN fittings for high pressure ‘o’ ring seal security

• Three independent high performance oxygen sensors

• True oxygen sensor vote out logic to eliminate the input of a faulty oxygen sensor.

•  Data acquisition ‘black box’ facility.

• Diver configurable alarm level settings for cylinder pressures, dive time, maximum depth, altitude, ascend rate, language

• Real time link between the life support system and the surface (Supervisor’s Monitoring Outfit)

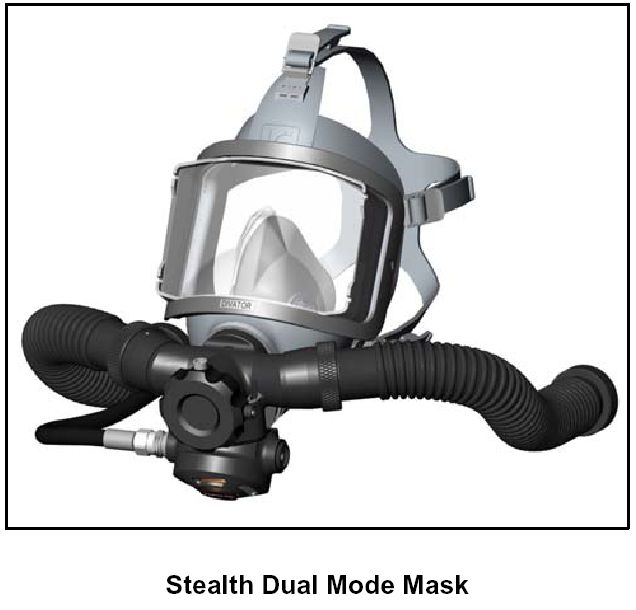

Dual Mode Mask

The Dual Mode Mask (DMM) is based on the Divator full face mask and incorporates the Divex Changeover

Valve and open circuit Demand Valve enabling the diver to alternate between closed circuit and open circuit

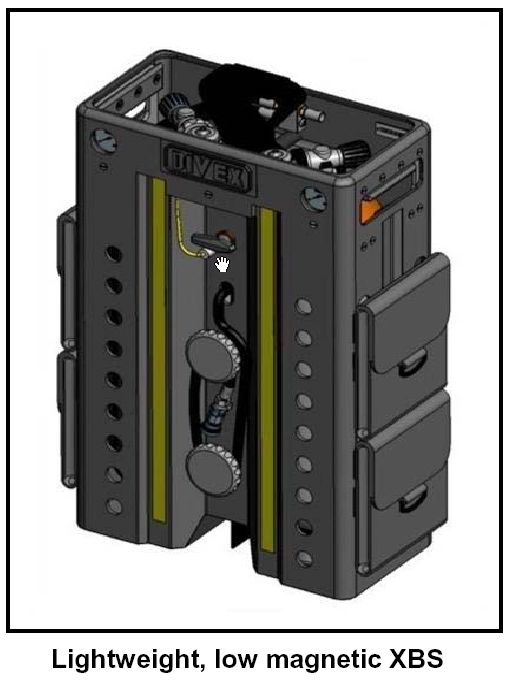

gas supplies such as the autonomous “on-board” bailout system, XBS or the Surface Supplied Gas System

(SSGS). The mask is fitted with a bite mouthpiece, water dump valve and a pressure equaliser. Provision is

made for the fitment of a communications system and the face port has also been modified to accept the

Stealth status LED that is held in a receptacle on the diver’s left side.
