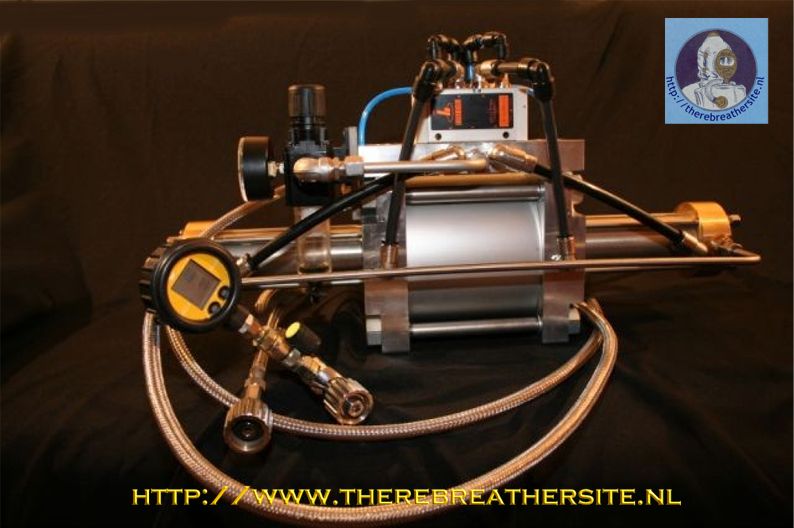

Chriss Ullmann has sent me two new oxygen boosters available through
http://www.deepbandits.de
These heavy duty oxygen booster are designed for 100% oxygen. Here you find all details.
Technical data sheet
Typ 220/1
Technical details :
width
414 mm
depth
140 mm
height
99 mm
weight
ca. 8kg
Connection gas inlet
G ¼“
Connection gas outlet
G ¼“
Connection drive gas
G ¼“
Pneumatice data:
Drive gas air pA
1-10 bar
Kind of gas
Filtered, oel free air
Performance data:
Pressure ration
1:22
Max. compression ration
1:16
Min. gas inlet pressure pA
15 bar
Max. gas inlet pressure pA
200 bar
Max. permitted gas outlet pressure pB
250 bar
Displacement volume in cm3
ca. 13 cm3
Förderleistung pro Doppel-Hub
0,013 ltr.
Formel für Gasauslassdruck pB
22 x pL
Druckluftverbrauch
6 ltr. pro Hub bei 6 bar
Loudness:
Max. acoustic level
< 78 dB (A)
Ambiente temperature:
Max operating temperature
+ 10 C bis max. + 60 C
Max. storage and transportation temperature
+ 10 C bis 60 C
Acceptabel kind of gases:
Gas
Inert-Gases
Optional
Oxygen 100%
Technical data sheet
Typ 3000/1
Technical details :
width
640 mm
depth
290 mm
height
315mm
weight
ca. 22kg
Connection gas inlet
G ¼“
Connection gas outlet
G ¼“
Connection drive gas
G ¼“
Pneumatice data:
Drive gas air pA
2-10 bar
Kind of gas
Filtered, oel free air
Performance data:
Pressure ration
1:30
Max. compression ration
1:20
Min. gas inlet pressure pA
15 bar
Max. gas inlet pressure pA
300 bar
Max. permitted gas outlet pressure pB
300 bar
Displacement volume in cm3
ca. 100 cm3
Förderleistung pro Doppel-Hub
0,10 ltr.
Formel für Gasauslassdruck pB
30 x pL
Druckluftverbrauch
16 ltr. pro Hub bei 6 bar
Loudness:
Max. acoustic level
< 78 dB (A)
Ambiente temperature:
Max operating temperature
+ 10 C bis max. + 60 C
Max. storage and transportation temperature
+ 10 C bis 60 C
Acceptabel kind of gases:
Gas
Inert-Gases
Optional
Oxygen 100%
08-03-2006
