There have been several negative
reports about this mouthpiece and company regarding reliability.
I would suggest being very (!) careful using this mouthpiece for actual
diving.
|
Nemo
Tec has gone out of business but with all the known
problems I have found a few more....very serious problems,
one the screws that hold on the second
stage on to the main DSV are the wrong side of the o-ring and are
not sealed so much of the problems with neg pressure test can be
over come by sealing these threads either by ptfe tape on the
threads or by a small gasket/oring on the screw head.
Second
and much more serious problem is the way the inner valve holder in
the second stage is made. the valve is an ATX40 and in the the ATX40
housing there is two lugs that hold the valve arm in place, so when
the valve is pressed down the arm does not pop out of it's
seat.........on the nemo tec valve these lugs are missing. this
means if you inhale very deep you can displace the valve arm, so all
delivery will stop....just when you need it!
BE CAREFUL USING THIS VALVE....... I may
have fix for this valve problem as well as the screw problem.
kindest regards
John Routley
|
Review Filip Krolak OC/CC
Mouthpiece.
Author:
Janwillem Bech
November 2004
(Nemotech seems to out of business. There is no information sent to me about
the reason. August 2005.)
|
- When I opened the package that arrived from Poland
I was very excited to see Filip
Krolak’s Nemotech Mouthpiece. It looked absolutely perfect. The
quality and the workmanship of the used materials were extremely high. The
mouthpiece exists of a square massive block of black synthetic material
under which the OC regulator has been assembled. Since the regulator is
delivered separately you have the option for an orientation whilst
assembling. The intermediate pressure (IP) hose can have the output either
left or right.
To me, the most surprising aspect of the OC/CC mouthpiece is the hose
connection with the existing rebreather hoses. Compared to the standard
connection of the adaptors as from the manufacturers on the breathing loop
of the Inspiration, Filip’s solution with his connection is very good.
-
- The only disadvantage of this solution is that the
‘ring’can be loosened by hand, where this is not possible with the
standard adaptor of the Inspiration. In theory a hose could get loose if
the ring comes loose. However, I do not think this is likely to happen in
practice. Below you can find photos of the assembling and modifications to
my Inspiration rebreather.
-
- With Filip’s mouthpiece the existing hoses can be
used. These can very simply be transferred on to the new mouthpiece. I
have, however, bought an extra mouthpiece and new hoses for two reasons.
Firstly it provides a very smooth running mouth piece (old item…) and
furthermore it provides a second loop that I can use. If ever I have a
problem with the OC/CC mouthpiece and if I have to wait for new valves or
a membrane, I can still use the original breathing loop.
-
|
|
Dismantling the existing Inspiration
hose adaptor is not a simple job. You need a special tool, and even so it is

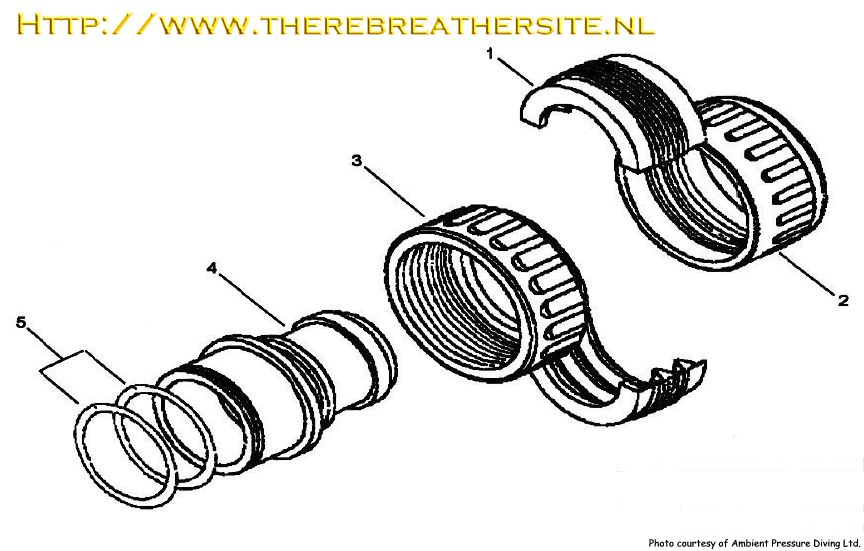

not always simple. As can be seen on the illustration the connector exists
of a swivel stem, 2 half inner hose clamps, and two locking rings. To
dismantle the ‘hose’ tool is to be inserted in the swivel stem. Then the
inner hose clamps have to be kept in a firm grip to avoid that they turn as
well. This can be done with a small screwdriver. You can also adjust the
pliers in such a manner that this will fit in the two grooves.
|
|
|

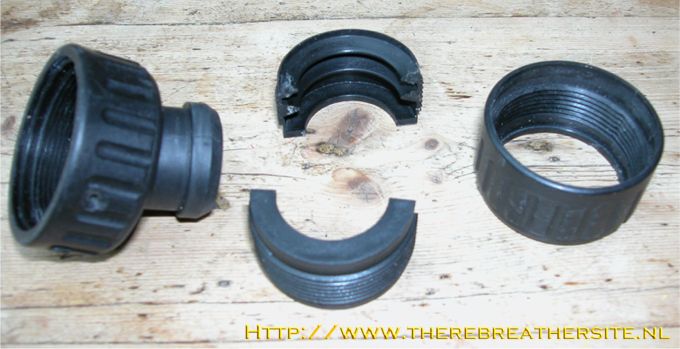

Here you see the separate particles.
|

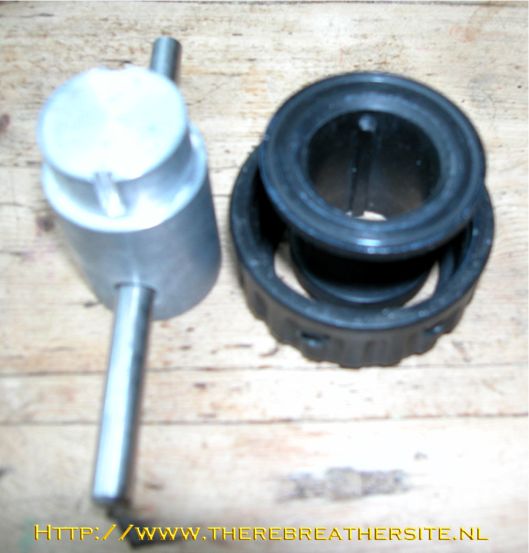

The
“Hose’ tool fits inside the adaptor and stops the swivel stem |
|
|
|

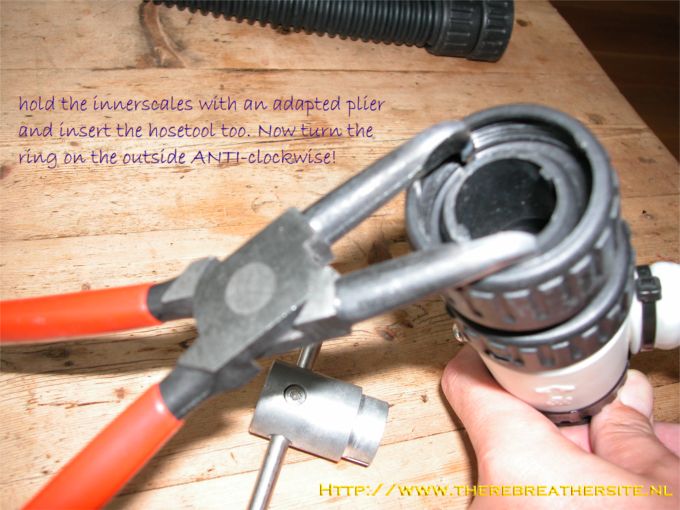

Here it becomes clear that the inner hose clamps can move along. This is
prevented by using pliers and a hose tool. The outer ends of the pliers have
to be grinded to reach the right size. The pliers are inserted into the
adaptor via the hose. Beware not to damage the hose!
|
|
|

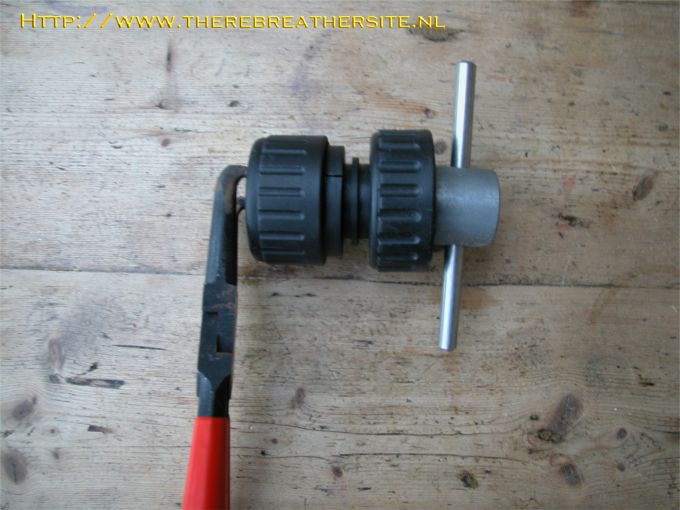

The
hose is normally present at the left hand side. To leave no doubt I have
left it out in this photo. The ‘hose’ tool stops the swivels stem from
turning. The pliers stop the outer hose clamps. Now turn the locking ring
loose from the outer hose clamps and the swivel stem. |
|

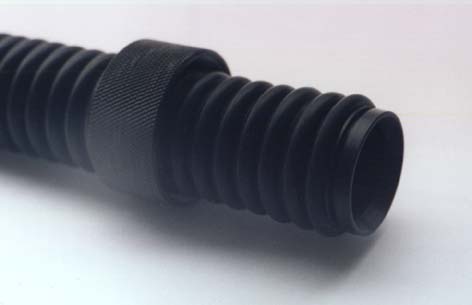

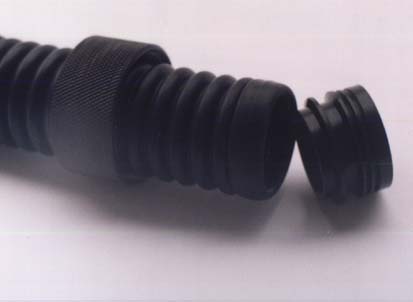

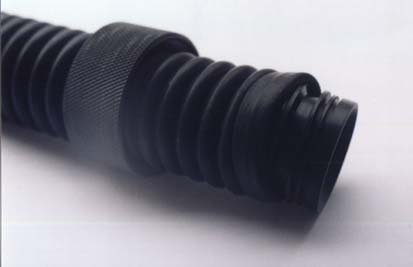

Now
the new connection from Filip can be assembled. This is a simple job. A
black of white adaptor (colour depends on production date) is put in the
hose. The adaptor fits in the OC/CC valve perfectly, a strong ring then
pinch off the hose. Now tighten the ring fairly firm and then you have an
exceedingly strong connection. |
|
|
|
|
|
|

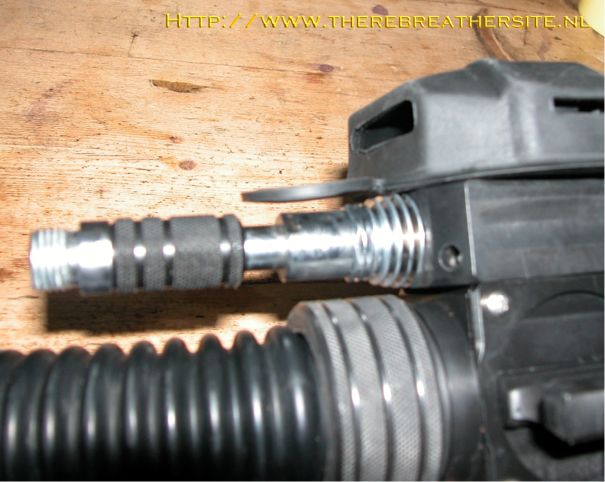

The
mouth piece is somewhat heavier at the surface then the standard mouthpiece.
Under water the difference is almost nil. I did not experience any
difference in comfort. The only thing that needs sincere attention is the
way you place the IP hose. For this regulator I have used an extra
flowstop to avoid free flow at all circumstances. This valve is
opened when used normally. I only lock it in case of free flow. The
observation of which should not prevent problems;)). |
|
|

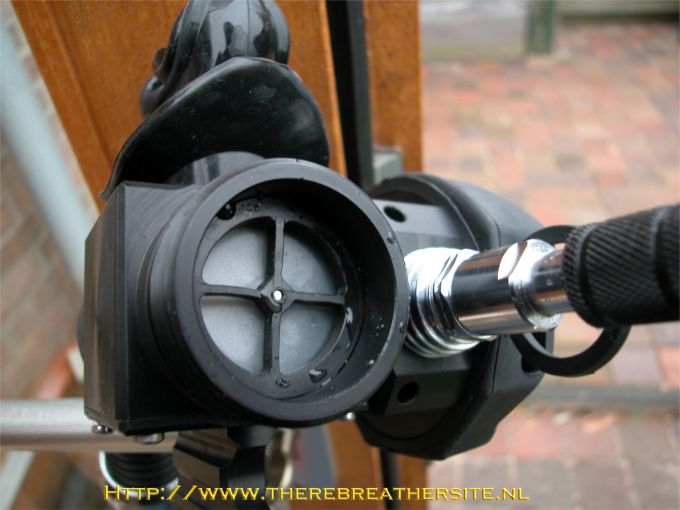

As
shown clearly here the valves within the mouth piece are of high quality.
When diving I noticed no difference in breathing resistance. Switching from
CC to OC can easily be done with one hand. The breathing resistance of an OC
regulator is remarkably higher than that of the Inspiration. Additionally an
incredible noise is caused by a large number of escaping bubbles…..;)).
However, it is a reassuring thought that you can switch to a safely
breathable gas with a single move of one hand.
|
|
I have reflected on how
to handle this extra safety facility in practice. At the end of the day you
buy an OC/CC mouthpiece in order to switch quickly to a safe bottom gas.
Since I dive in two different manners I wanted to be able to adapt the
system in order to dive with or without a side bottle. When I make dives to
approx. 25 meters I do not carry an extra cylinder and I connect the
mouthpiece to the inboard diluent. However, as soon as I make a deeper dive
I want to be able to connect the mouthpiece to my inboard diluent gas and
side bottle at the same time. This is why I placed a Diluent Switch. This
switch was produced by one of my friends (bedankt Hansje!) and is not for
sale. There are however various addresses where such switches can be bought
(Aldo Ferruci, Sartek, Filip).
Make sure the system
can be rebuild in a simple manner and work with as many standard connections
and hoses as possible. The diluent switch has to be robust and it should be
possible to use it with diving gloves on.
|
|
|
|
|
Finally, here is a picture to
compare the size with the original mouthpiece. |
|
Finally: Filip Krolak has built a perfect OC/CC mouthpiece
for use on various rebreathers. The materials and workmanship but above all
the breathing comfort can be classified as very good. A very high quality
product is been offered for a price worth it. I can warmly recommend
Filips’s mouthpiece! For the latest information check the Nemotech website:
http://www.master.pl/~nemotech/
Janwillem Bech
November 2004
|
Filip offered me the possibility to test his new HEAD UP DISPLAY. A
report will follow soon!
|
