Seaway has introduced there new Cora II rebreather. Long
before the latest presentation Airway Introduced the CO.RA I. Both Cora
units are semiclosed lung operated units. In German they are called "verbrauchsgesteuert".
The simple concept of this rebreather has some nice features but above all
the most surprising factor is the price. The unit is sold for 1800 euro! |
||||
|
The CORA II is designed in such way that by interchanging the lids the function of the rebreather can be changed. Now the unit is available in 4 versions: -Semiclosed lung operated rebreather with the use of 1 Gas -Semiclosed lung operated rebreathers with the use of two gases (CMF flow) -MCCR, closed circuit with manual addition and constant mass flow of 0,8 ltr/min (Kiss style) -ECCR, electronic controlled closed circuit rebreather (to be released..) |
||||

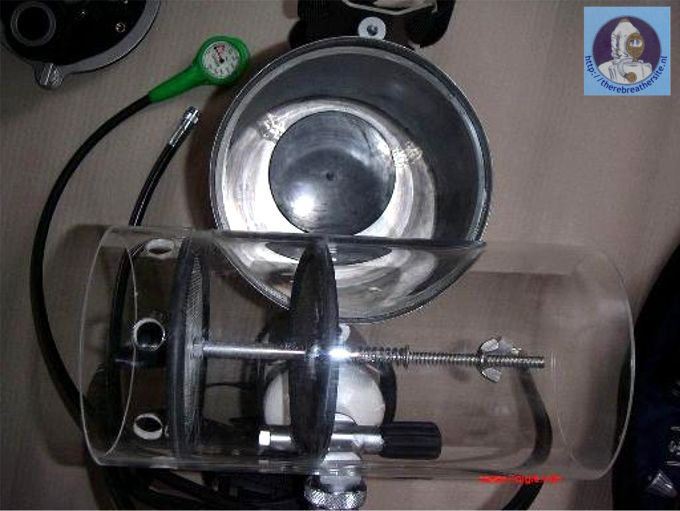

| CORA I | ||||
 |
||||

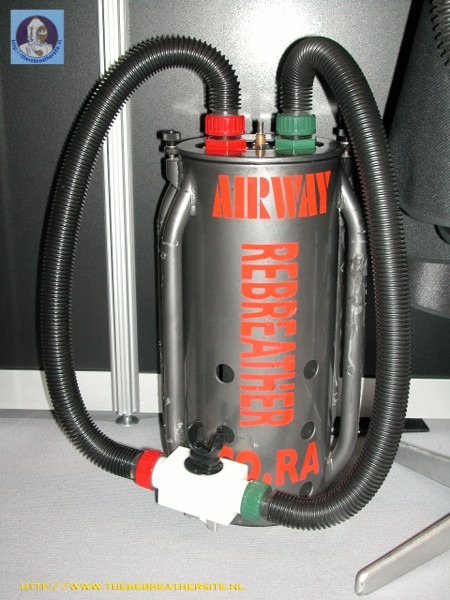

| CO.RA I made by Airway | ||||
 |
||||
| A huge mouthpiece conform the 1997 standards ;)) | ||||
| CORA II | ||||
 |
||||
 |
||||

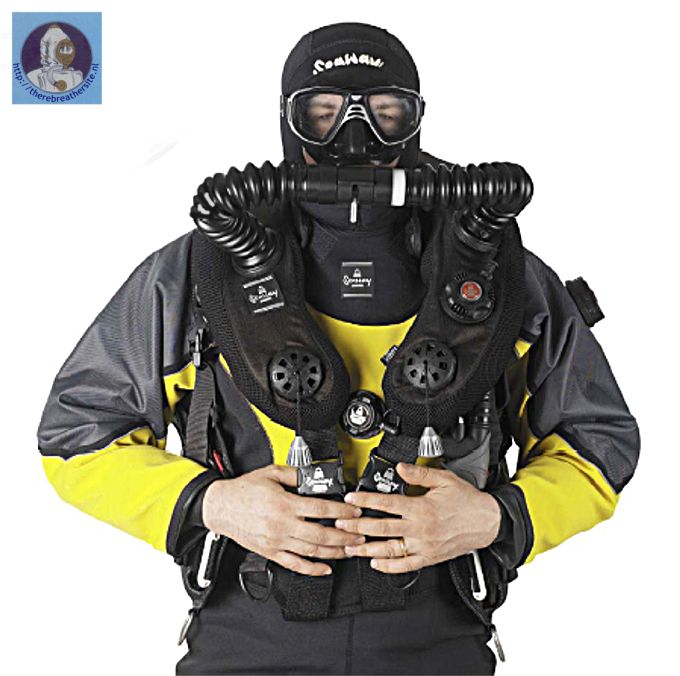

| Over the shoulder counter lungs. Extremely short loop! | ||||
 |
||||
| Mouthpiece with shut off valve | ||||
 |
||||
| The scrubber has been placed in a stainless steel housing made of V4A (1.4571) | ||||
 |
||||
| Each unit comes with engraved serial numbers | ||||
 |
||||

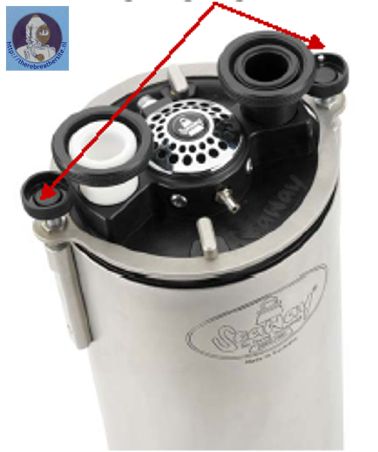

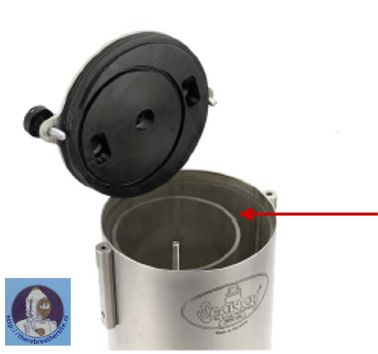

| The scrubber inside the housing is placed asymmetrical, in such way it is impossible to connect inhalation and exhalation tubes in the wrong way. | ||||
 |
||||

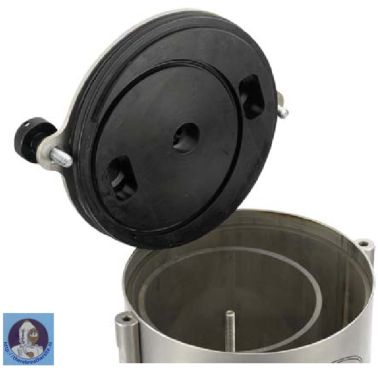

| The Lid can easily be opened | ||||
 |
||||

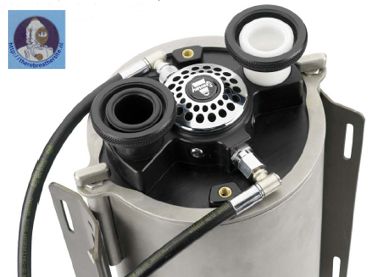

| Gas addition on top of the scrubber | ||||
 |
||||
| Although the gas enters the scrubber in radial direction, the actual scrubbing finds place in axial direction! The scrubber contains maximal 3,5 kg sofnolime. | ||||
 |
||||
| The housing has extra thermal isolation to prevent the scrubber of cooling in cold water. | ||||
 |
||||
 |
||||

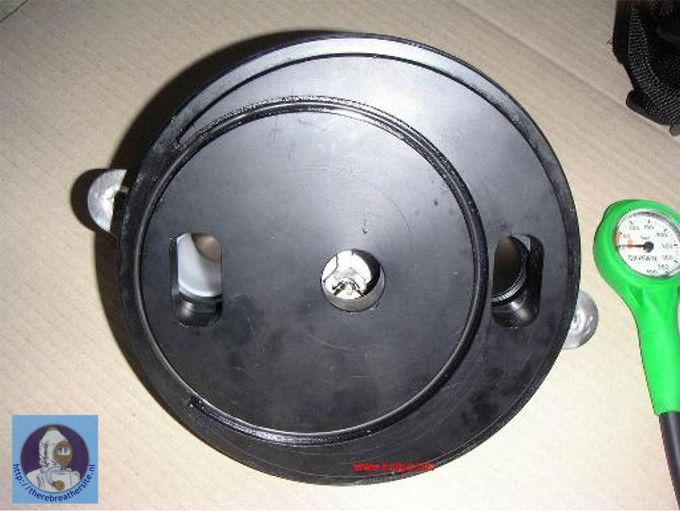

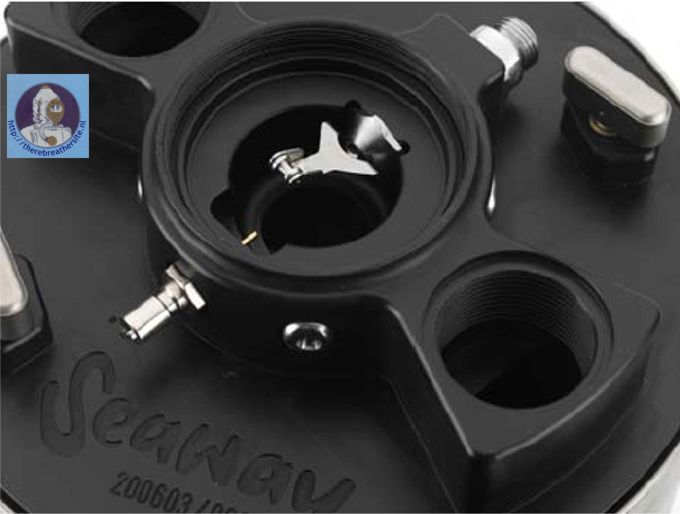

| Housing lid with eccentric groove for scrubber | ||||
 |
||||

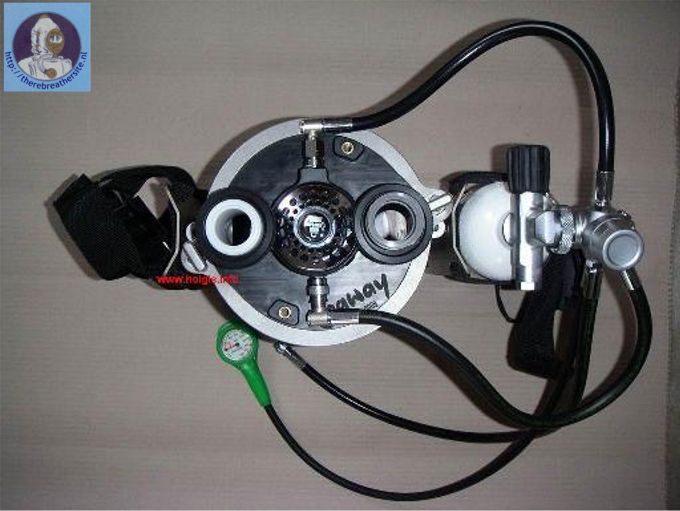

| Manual addition + OPV | ||||
 |
||||

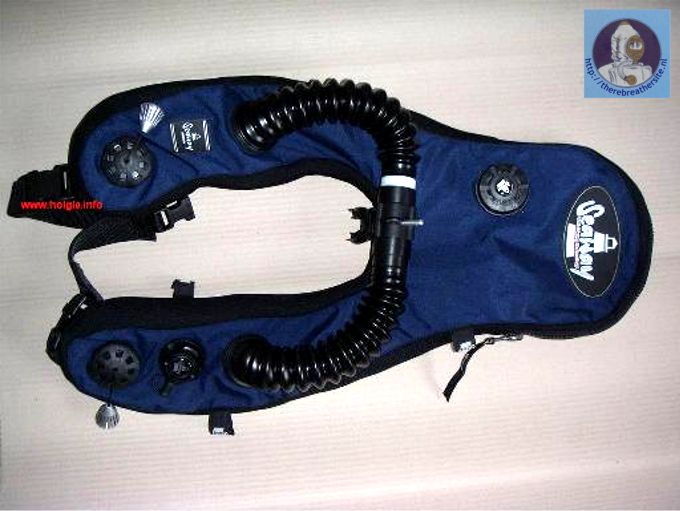

| Counterlung Assembly | ||||
 |
||||
 |
||||
 |
||||
 |
||||
 |
||||
 |
||||
| I hope you enjoyed the CORA II | ||||
|
