DATASHEET SEMI CLOSED REBREATHER
|
SMS
I/B
|
Date: 09 November 2005 |
Schlauchabhängiges-Mischgas-Schwimmtauchgerat
mit Bypass
(Hose dependant –
Mixgas – Swim diveunit with Bypass)
|
Database semi closed rebreathers
by: J.W. Bech
|
|
Manufacturer |
Dräger |
(name or company) |
|
Designer |
|
(name) |
|
Model |
SMS1/B |
(number type) |
|
Land of origin |
Germany |
(country) |
|
Design year |
1969-1970 |
(actual project start) |
|
Special Note: |
Variant See SMS 1 |
(additional space for info) |
|
User group |
Military |
(sport/mil/civil/fire) |
|
Magnetic characteristics |
|
(if
known) |
|
Part no: |
T12
170 |
(part #) |
|
Working principle
|
Constant Mass Flow |
(CMF/Metering,Passive) |
|
Gas type |
Heliox 17,5/82,5 |
(Heliox/Nitrox) |
|
Gas mix type |
% Oxygen |
% Helium |
Flow |
Worktime |
Depth |
|
(backup) Heliox |
17,5 |
82,5 |
|
8 min |
200m |
|
|
|
|
|
|
|
|
1 liter backup cylinder
filled with 200 bar.o The CMF will work to max 40 bar, therefore 160
liter gas is available. Since 8 min dive time is referred to the
flow will be 20 ltr/min.
Presuming the diver is @ 200 meter and using his emergency bailout
with a metabolic use of 1,5 liter of oxygen per minute the half
closed quotation gives a FiO2 of (20l/minx0,175)-1,5 / 20l/min – 1,5
= 0,108 % resulting of a 2,27 bar pO2 at depth. |
|
|
|
|
|
|
|
|
Intended use |
From dive bell or UW lab. |
Sport/MC/Deep/Tethered |
|
Dimensions LxWxH
|
500x420x160 mm |
(outside in mm) |
|
Device weight |
(12
kilo empty) 14 kilo filled |
(filled+gas
on land) |
|
Intermediate Pressure |
|
(IP
) |
|
Overpressure valve |
11
cm – 17 cm WK adjustable |
Range |
|
Max depth |
200 |
(mtrs) |
|
Used material for housing/backplate |
glasfibre |
|
|
Pressure reducer |
Membrane type |
Membrane / Mushroom |
|
Connection reducer – bottles |
M22
x 1,5 |
|
|
Supply pressure |
200
bar, minimum 30 bar |
|
|
Umbilical connection |
Yes |
|
|
Manual bypass |
Yes |
|
|
pO2 measurement standard |
No |
|
|
Pressure gauge range
|
|
|
|
Cylinders |
1
litre |
|
|
Cylinder material |
Steel |
|
|
Cylinder thread |
M22
x 1,5 |
|
|
Valve |
- |
|
|
Designed for gasmix |
17,5 / 82,5 heliox |
|
|
Co2 absorption cartridge
capacity |
2,5
liter |
(early square form!) |
|
Co2 absorption cartridge
rechargeable |
Yes
by the diver |
|
|
Co2 absorption cartridge
storagetime |
- |
(month/year) |
|
Co2 absorption time testing
(CE) |
Not
CE |
|
|
Connections Co2 cartridge |
screw |
|
|
Guaranteed absorption time |
3
hours |
|
|
Grade of absorption material |
dragersorb |
|
|
Breathing bag material |
Reinforced rubber |
|
|
Inhale bag volume |
5,5
liter |
|
|
Exhale bag volume |
Total = 5,5 |
|
|
Total loop Volume |
Total volume ~8,5 liter |
|
|
Operating temperature |
- |
|
|
Magnetic signature |
- |
|
|
Colour (s) |
Yellow |
|
|
Worn |
On
the back |
|
|
FFM attached |
NO |
(mask) |
|
Mouthpiece valve |
Yes |
|
|
Extra info: |
|
|
Additional information: |
|
|
|
Email address owner: |
|
|
|
URL owner: |
|
|
|
If
you have any information to add this sheet please mail it to
jw.bech@quicknet.nl
References to source and names will always be added!
|
|
| |
|
The Big difference between the Dräger SMS 1 and the Dräger SMS 1/B
are two aspects. Biggest difference is the SMS 1 is supplied with
ambient gas. The pressure is reduced in the diving bell where the
MVB unit is located. The SMS 1/B on the other hand has a medium
pressure supply of 40 bars and the pressure reduction is performed
in the rebreather. Also the SMS 1/B is equipped with a manual bypass
on the bottom of the glass fibre housing. Gas supply is realised by
using the MVM unit. |
| |

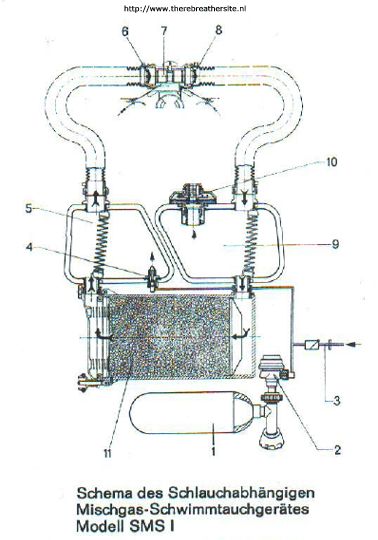

SMS 1 Diagram |
SMS 1/B Diagram |
| |
|
Info found: |
|
|
Origin:
http://www.therebreathersite.nl |
|
|
Info: |
|
|
Important features:
-
Gas supply via umbilical, 40 bar medium pressure to diver,
gassupply located in diving bell
-
Mixed gas prepared in diving bell by means of the unit MVM @ 40
bar
-
Build in bailout
system consisting of: Pressure reducer - CMF valve - Mix gas
bottle of 1 liter\
-
Low breathing
resistance due to large diameter hoses
-
Scrubber with low
resistance for W.O.B and water lock
-
All parts are build
in the housing made of glass fibre, worn on the back
-
Separated inhale and
exhale counterlung, resulting in a cleaner scrubber bed.
-
Low resistance in
the water due to compact form and small measurements of the
unit.
-
Easy maintenance by
replaceable parts
|
| |
|
|
|
|
|
|
