DATASHEET OXYGEN REBREATHER

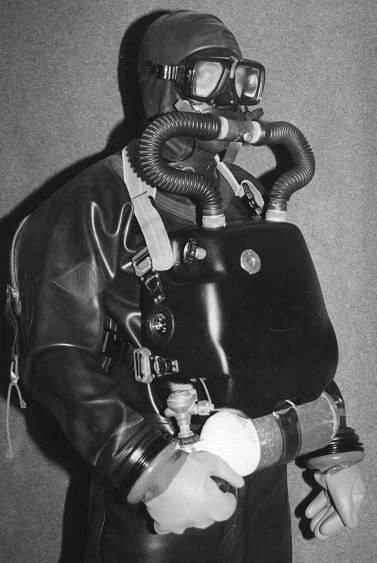

 Dräger LAR III

Date: 16 June 2002



JW. Bech

Manufacturer

Dräger



Model

LAR III



Land of origin

Germany



Special Note:





User group

Military



Part no:





Working principle

lung operated demand valve/manual bypass



Gas type

Pure Oxygen



Cylinder volume

2 liters



Max. cylinder pressure

200 bar



Material of cylinder

Steel



Counterlung inspire

5,5 liters



Counterlung exhale

?



Dive time duration





Operating temperature





Magnetic signature

Low



Weight ready to use in Air





Weight ready to use in water





MOD

6 meters



Scrubber material

Sodasorb



Colour

Black /Green



Price

$8000,00



Worn

Chest



Mouthpiece

On/Off

Strapp

Backpack

-



Extra

Pressure Gauge on left side



Extra

Double cylinder valves









  A special feature on the LAR III to compare the model to the LARII is that there is an extra valve on the upper left side of the rig. Who nows why this feature is made this way ?

Recently I was informed by Robert Fondren the following information:

That valve at the top of the LAR-III controls the breathing resistance necessary to actuate the built-in gas-addition valve/ O2 purge button on the front anatomical-right of the LAR-III.

This knob is very useful!



thanks Robert for this additional info! (11-04-2009)







Fotos LAR III

If you have any information to add this sheet please mail it to jw.bech@quicknet.nl References to source and names will always be added!



Info found:



Origin: http://www.therebreathersite.nl



Nicholas Vasilatos rebuilt an old LAR III to a working unit. Check the photopage of the LAR III.
Pictures thanks to Nicholas Vasilatos!
