DATASHEET OXYGEN REBREATHER |
||||||
Dräger LAR V |
Date:
16 June 2002 |
|||||
|
|
JW. Bech
|
|||||
|
Manufacturer
|
Dräger |
|
||||
|
Model |
LAR V |
|
||||
|
Land of origin |
Germany |
|
||||
|
Special Note: |
|
|
||||
|
User group |
Military |
|
||||
|
Part no: |
|
|
||||
|
Working
principle |
Lung operated regulator |
|
||||
|
Gas
type |
Pure oxygen |
|
||||
|
Cylinder
volume |
1.5 ltr
antimagnetic Stainlesssteel |
Sferic bottom |
||||
|
Cylinder volume |
1.9 ltr aluminium
low magnetic |
Flat bottom |
||||
|
Cylinder volume |
4 ltr aluminium
low magnetic |
Flat bottom |
||||
|
Max.
cylinder pressure |
200 bar tests at 300 bar |
|
||||
|
Material
of cylinder |
Stainless steel / Aluminium |
|
||||
|
Counterlung
inspire |
5,5 liters |
|
||||
|
Counterlung
exhale |
non |
|
||||
|
Dive
time duration |
|
|
||||
|
Operating
temperature |
-2 degr C / +40 degr C |
|
||||
|
Magnetic
signature |
A magnetic with 1.5 ltr bottle |
|
||||
|
Weight
ready to use in Air |
13 kg |
|
||||
|
Weight
ready to use in water |
Neutral |
|
||||
|
MOD
|
7 meters |
ppO2= 1.7 bar |
||||
|
Scrubber
material |
Draeger Dive sorb |
|
||||
|
Colour
|
Black |
|
||||
|
Price
|
12000.00 $ |
|
||||
|
Worn
|
chest |
|
||||
|
Mouthpiece
|
On/off plastic |
With strapp |
||||
|
Backpack
|
No |
|
||||
|
Extra
|
|
|
||||
|
Extra
|
|
|||||
|
|
|
|||||
|
|
|
|||||
LAR
V has pressure gauge on top in direct view of the diver.
|
|
|||||
|
|
||||||
|
If
you have any information to add this sheet please mail it to jw.bech@quicknet.nl
References to source and names will always be added! |
|
|||||
|
Info
found: |
|
|||||
|
Origin:
http://www.therebreathersite.nl
|
|
|||||
|
Info:

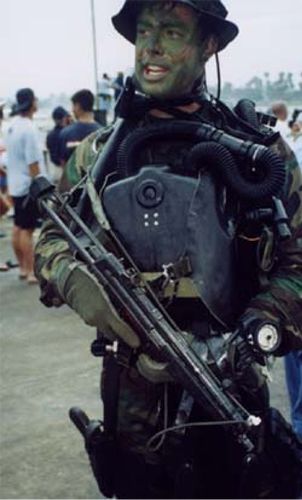

Dave Sutton owns a LAR V. Thanks for the pictures! |
|
|||||
|
|
|
|||||
|
|
||||||
|
||||||
Source US navymanual
