| This page starts with building phase 1. There is now an update as you will find in part 2 of this rebreather building | |||||
|

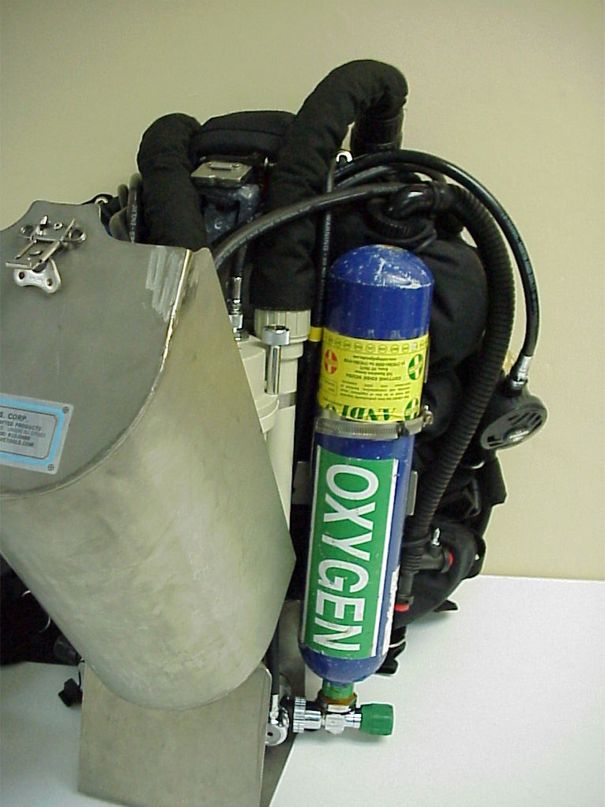

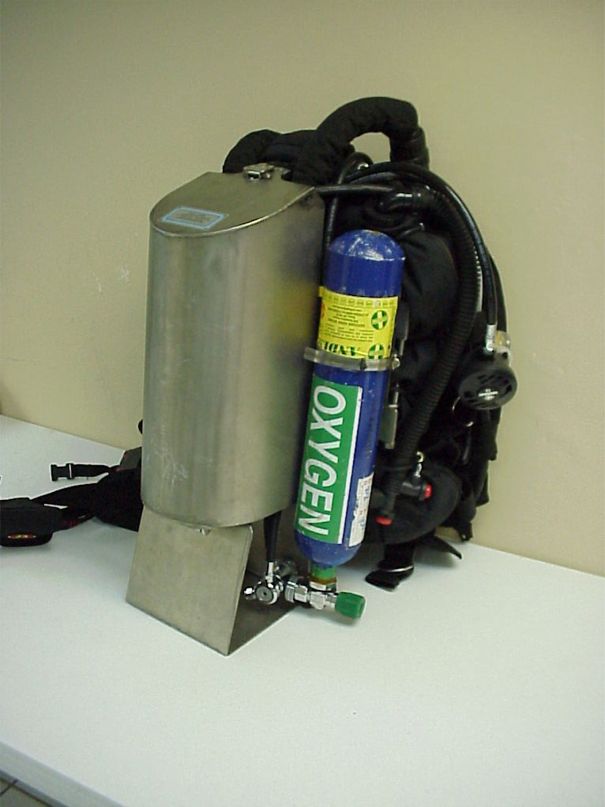

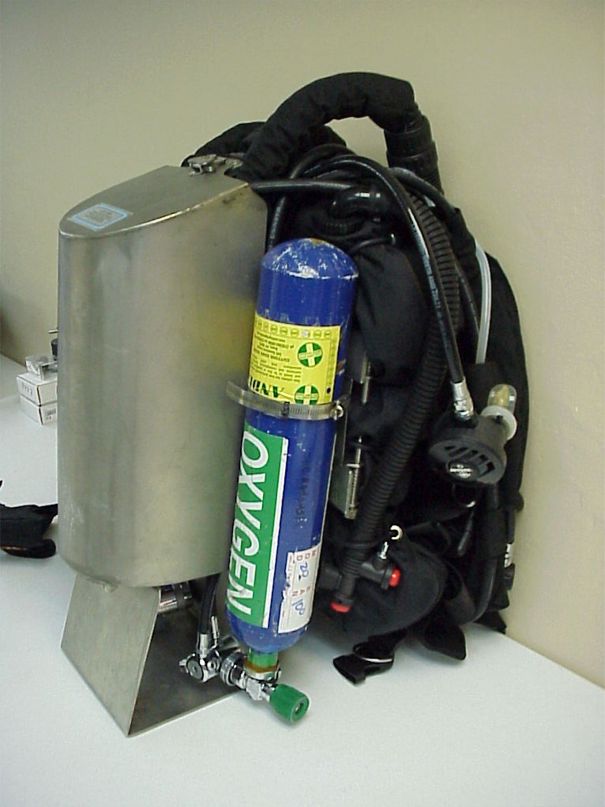

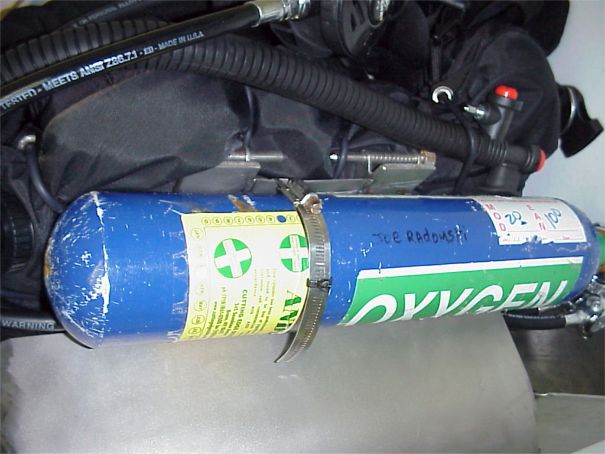

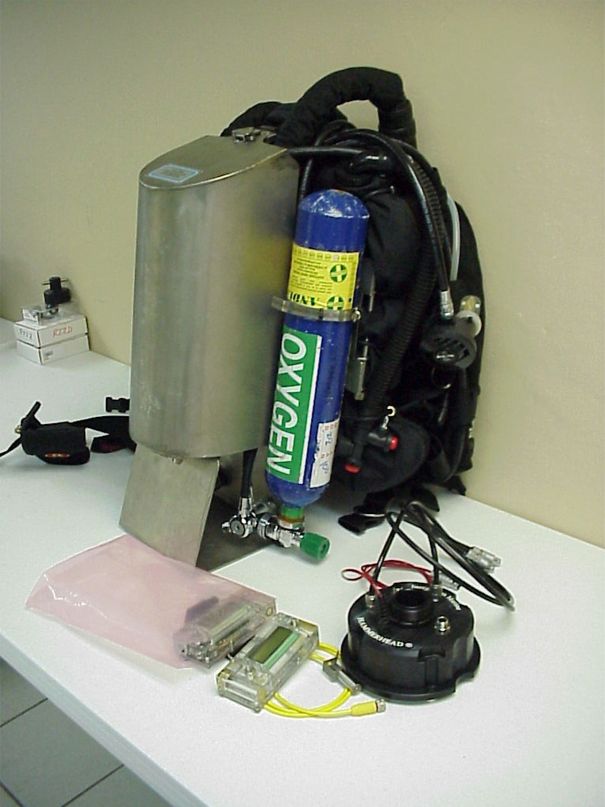

Joe Radomski sent me pictures of his new rig. This is really something nice! For those who think an Inspiration is bulky and heavy, here is a possible solution. You just contact Enrique of Tech Dive Tools and ask him to build you a TITANIUM inspiration housing. The housing should not weight more than ~ 7 kilogram. For nice handsets and real time decompression you call Kevin Juergensen and order a hammerhead. Unfortunately is was hard to find titanium screws and small parts, but ok.. you can't have it all .... |
|||||
|
|
|
||||
|
|
|
||||
|
|
|
||||
|
|
|
||||
|
|
If you have any questions, please contact Joe Radomski | ||||
| Here are the updates I recently received from Joe Radomski. He fine tuned his set and added extra bottles. | |||||
|
|

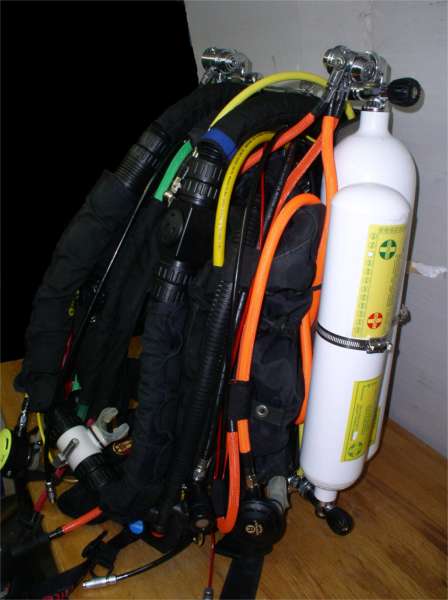

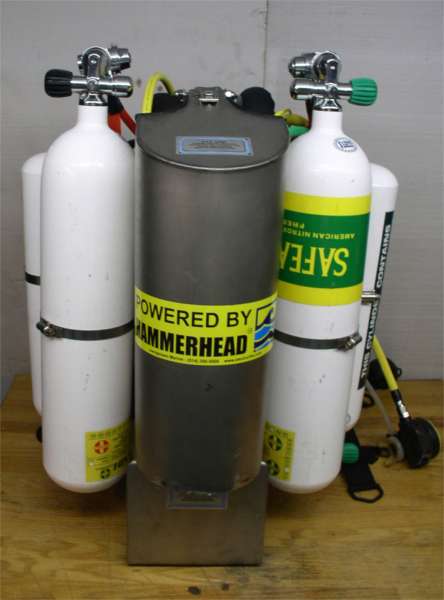

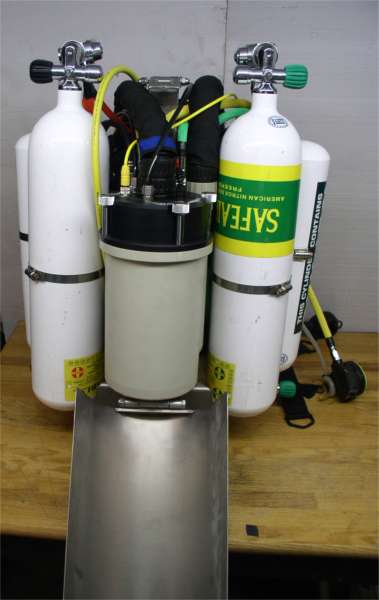

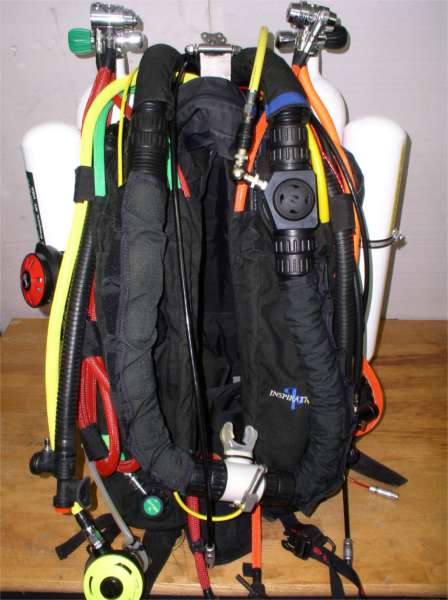

This is how the rig is now. |
||||
| The two larger tanks are 7 l steels with Poseidon regulators
the two attached in front are 3l steels attached to quick disconnect
brackets (pictures at end)
|
|
||||
|
|
|||||
| The larger cylinders are strictly bailout diver left is
bottom bailout hooked up to a high performance Poseidon 1st with a Kirby
Morgan second stage the cylinder on the right is used for deco bailout.. I
dive with a 50/50 mix
|
|
||||
|
|

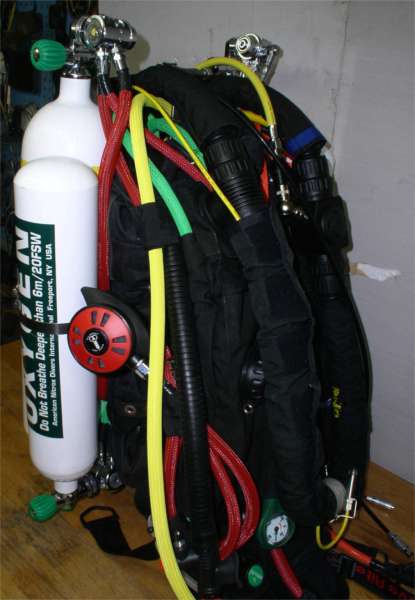

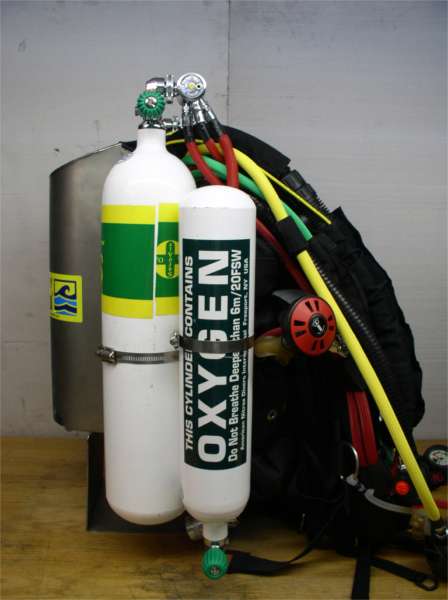

The 3l on the left is my bottom diluent and the 3l on the
right is my oxygen.. instead of using the normal Apeks 1st stages I am using
DST (turret and sealed)
|
||||

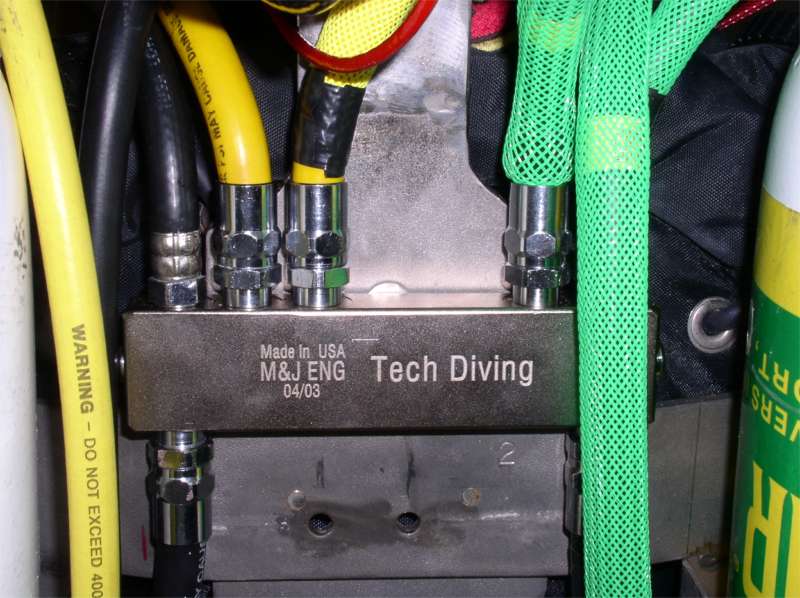

| The manifold I had made for me by MJ engineering I gave him
the exact layout and he machined it for me. Both bailout bottles have
Inspiration compatible whips so I can use them for SCR use, and the 2nd
stages have long hoses so they can easily be donated to others..
|
|
||||
|
|
The unit weights approx 55kg fully charged
|
||||
|
|
||||
|
|
This unit has my hammerhead attached as well as a cell
integrated explorer computer from hs-engineering. (different readings because Hammerhead is not calibrated ;)
|
||||

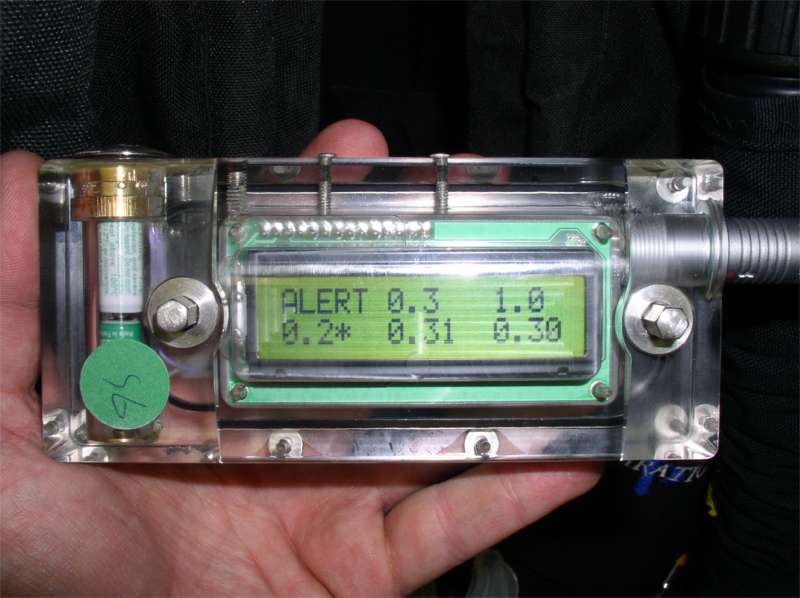

| Here the Hammerhead handset |
|
||||
|
|
Here the Hammerhead DIVA | ||||
| the ADV is from Oxycheq its an improved version of Bobs, and
I'm using a 360 degree swivel and a MJE cutoff.. made considerable better
than the APEKS version..
|
|
||||
|
|

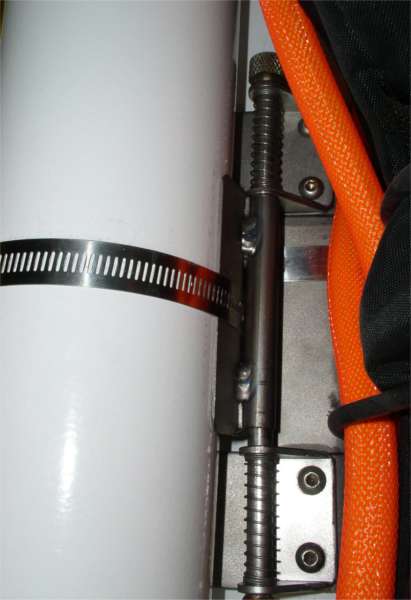

Here the quick releases | ||||
|
|
|||||
|
|||||
