After scanning them I realized he rebuilt a fire fighting / mine rescue rebreather to be used for underwater purposes.

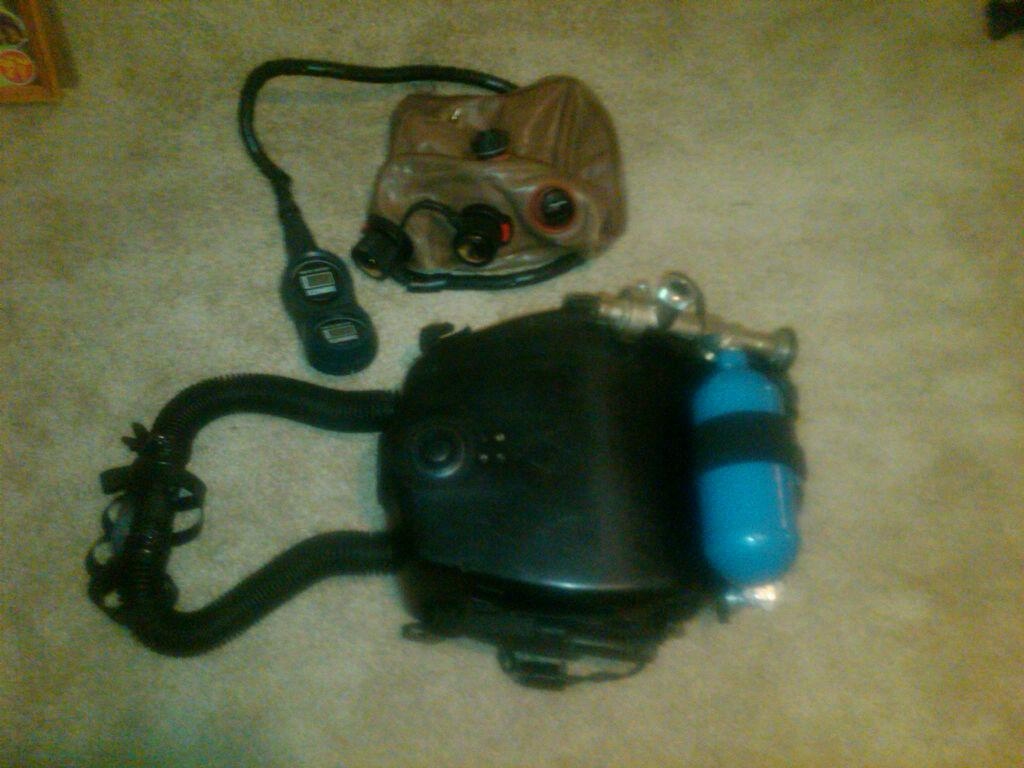

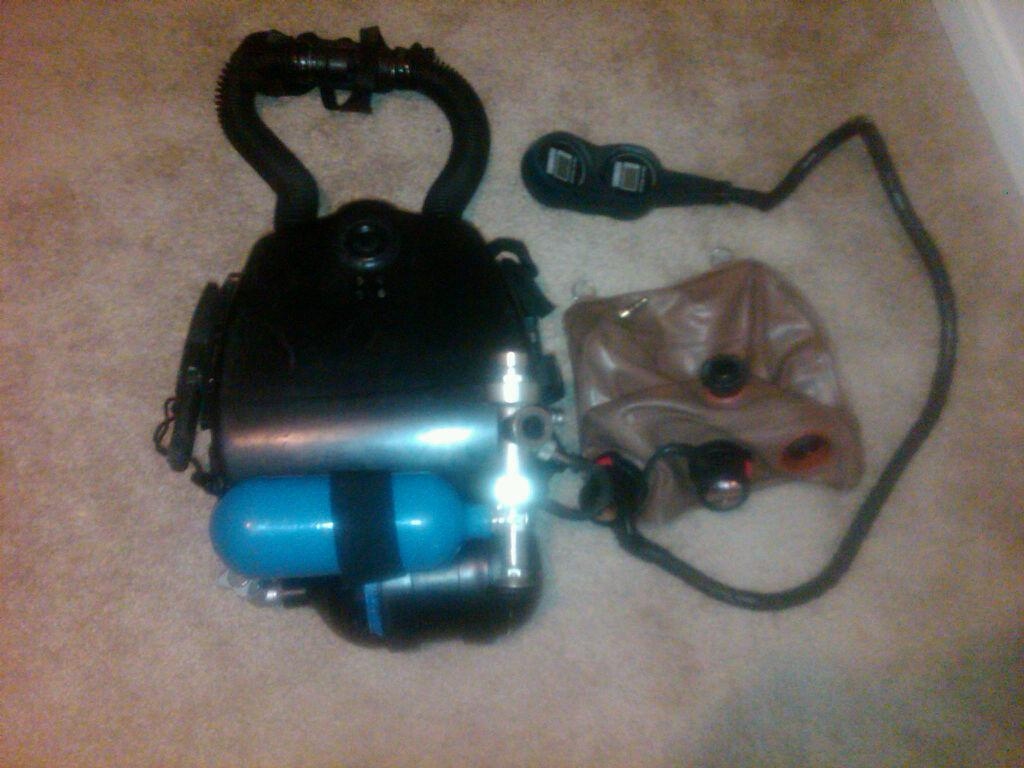

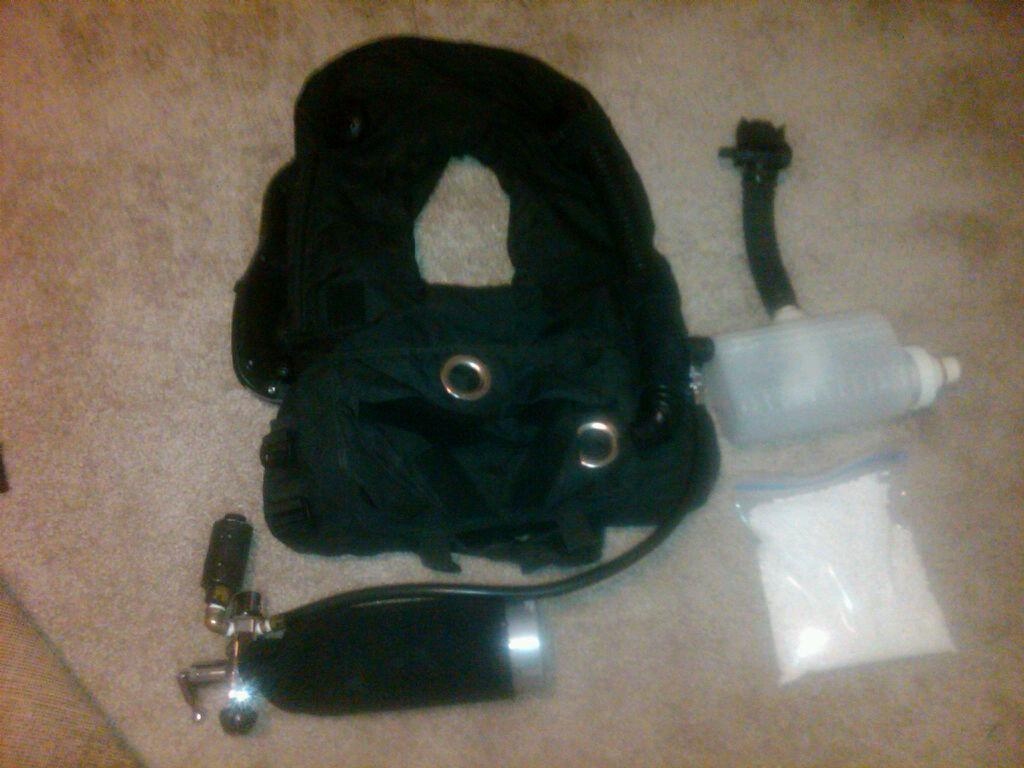

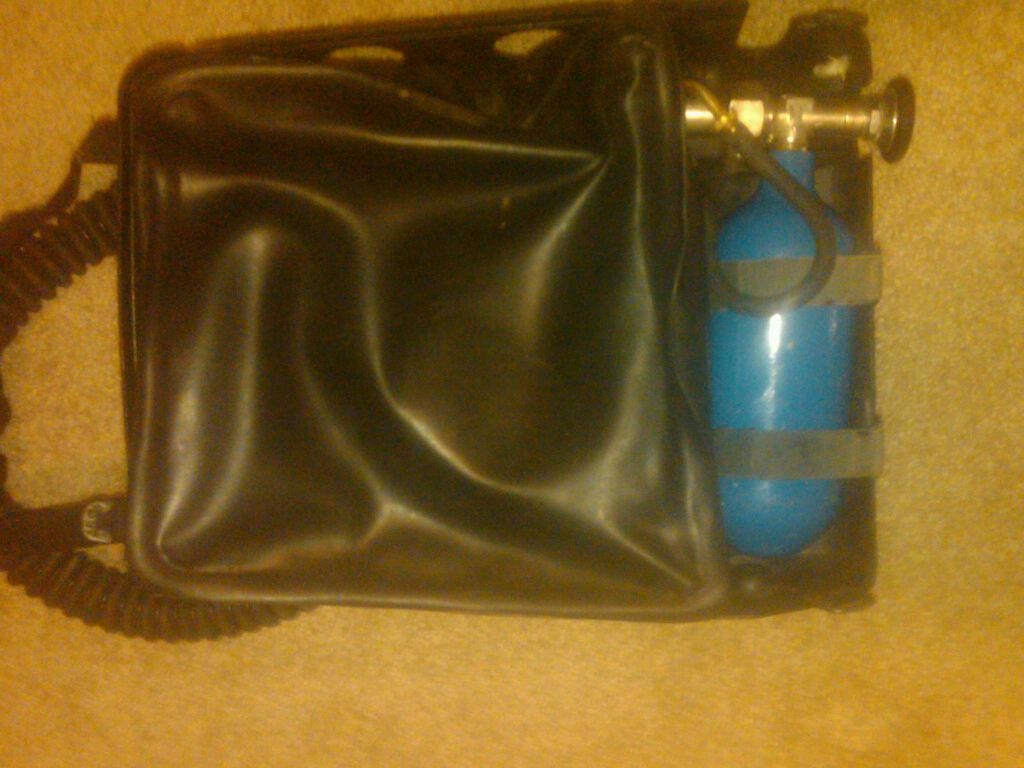

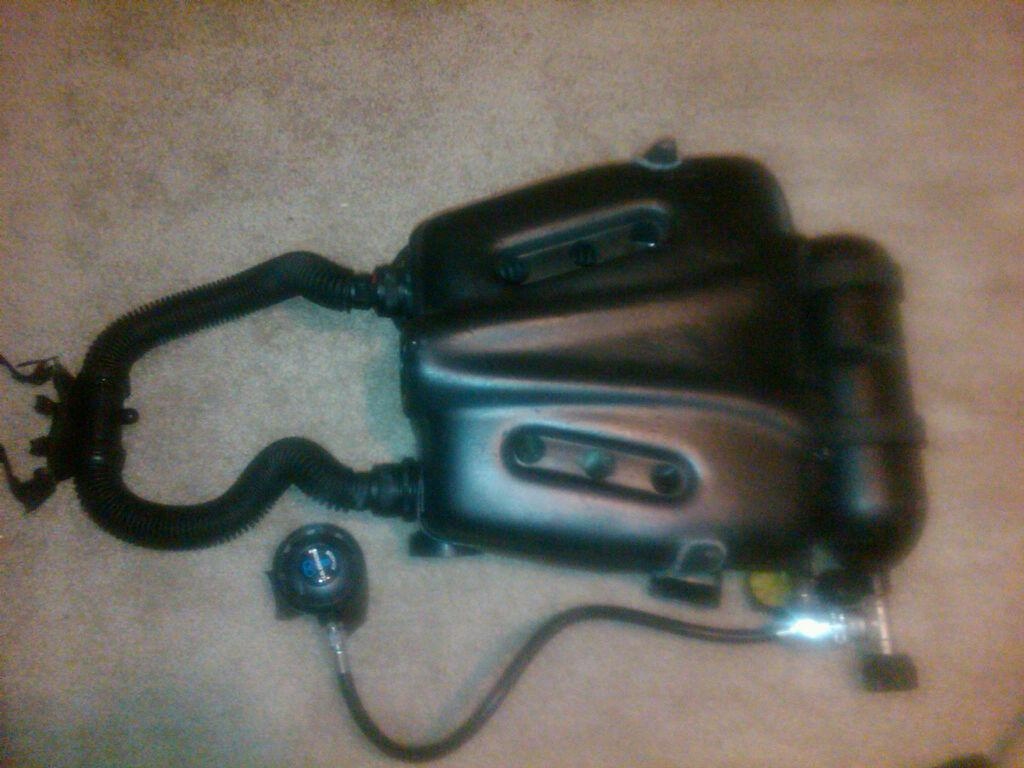

Here you find the pictures of his rig.In 2010 Steve send me additional pictures of even more rebreathers he ownes and dives with. Please enjoy the pictures.
Hope you enjoy my rebreathers!

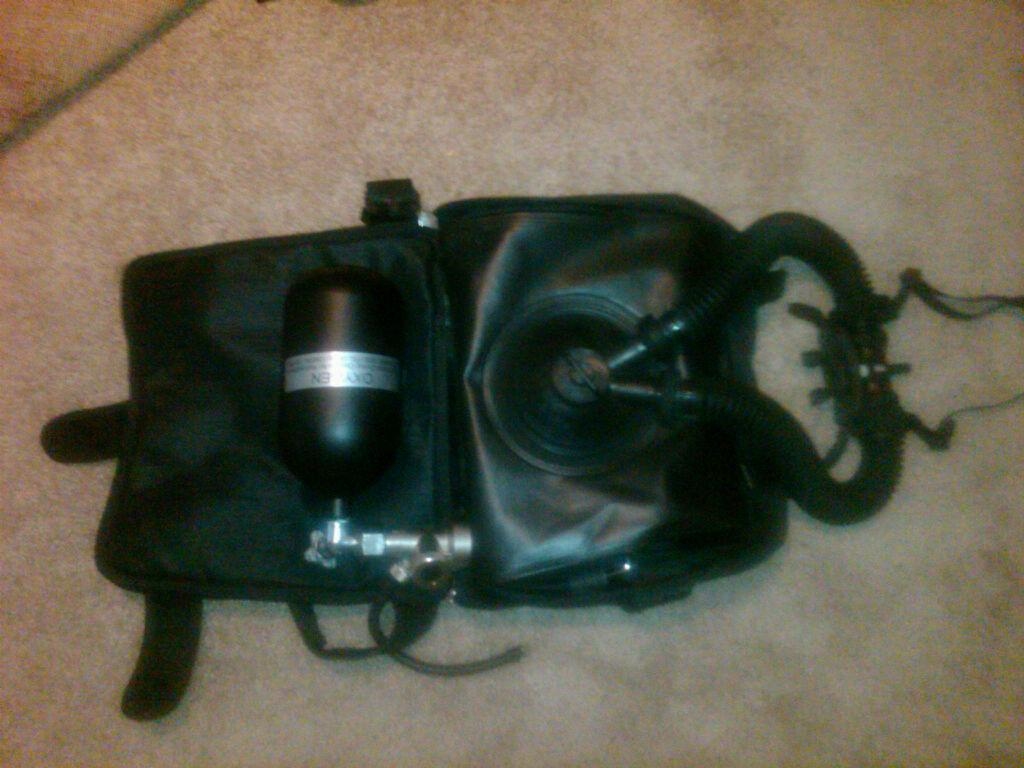

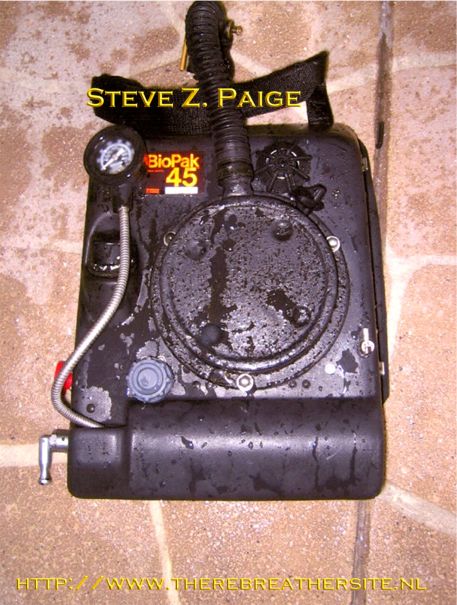

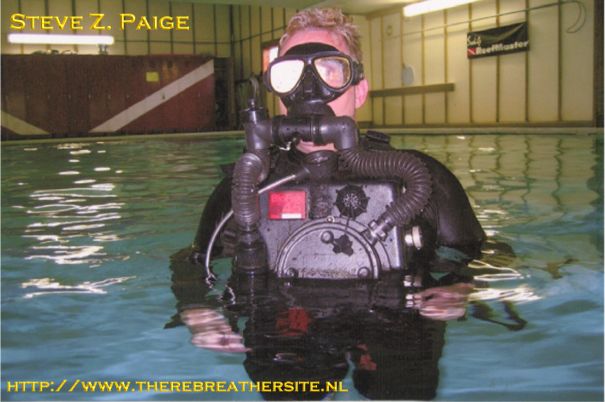

Here you see the original Biopak 45 with the dual hose and system.

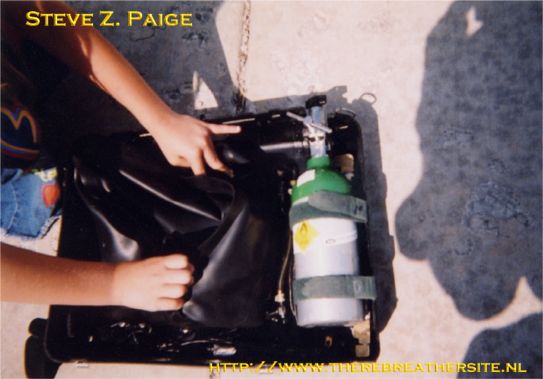

2. The original interior.. Steve took the CMF device out and replaced it with a hand operated valve..
Here you see the original outfit. The unit comes was a CMF device offering 3.4 l oxygen per minute. To much..

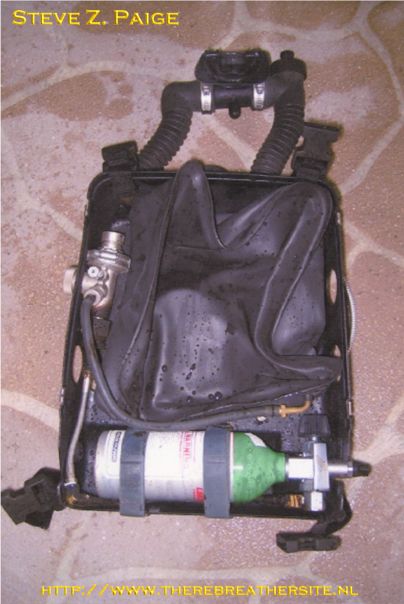

CL and oxygen, the oxygen addition is now manual by opening the valve
Pendulum conversion

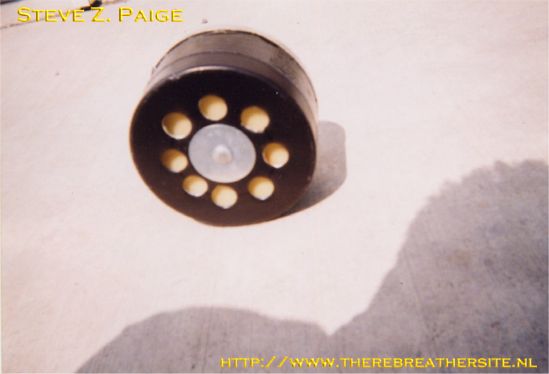

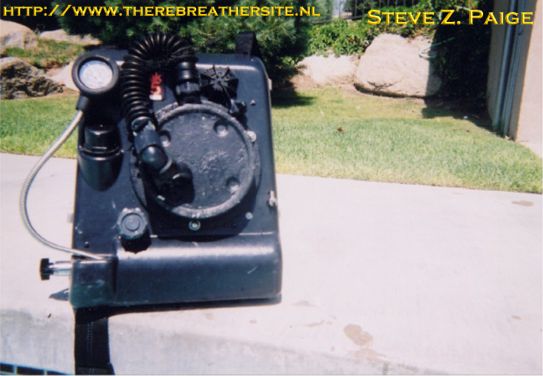

Front side of the refillable canister

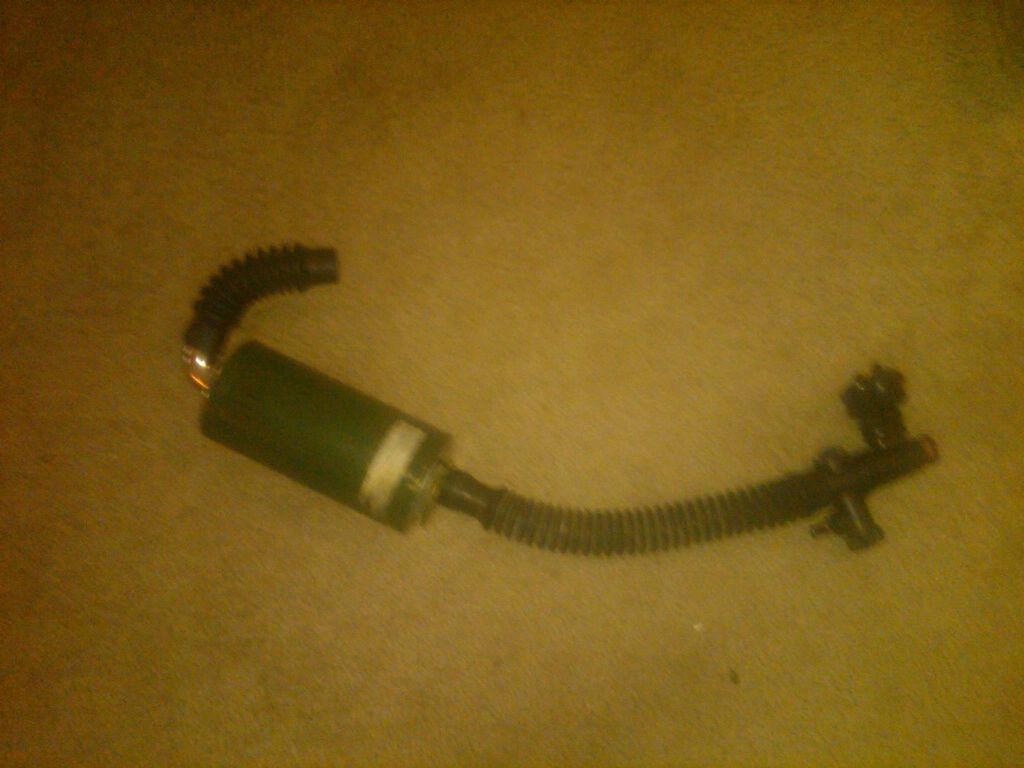

Here you see the handmade pendulum scrubber for the Biopak 45

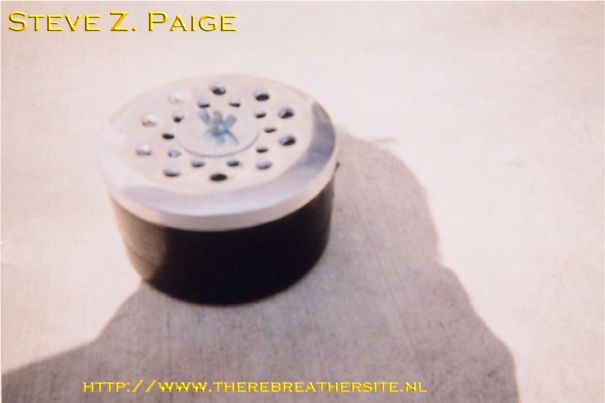

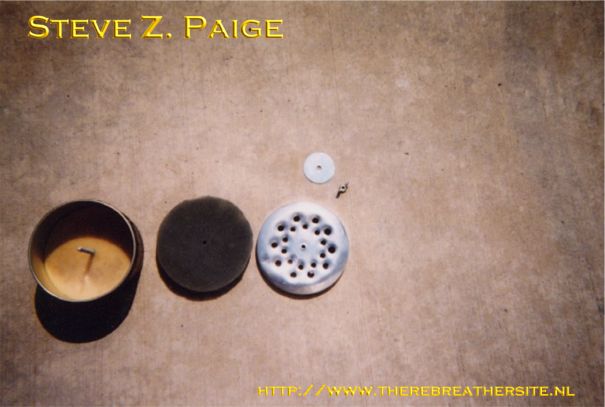

The pendulum scrubber construction

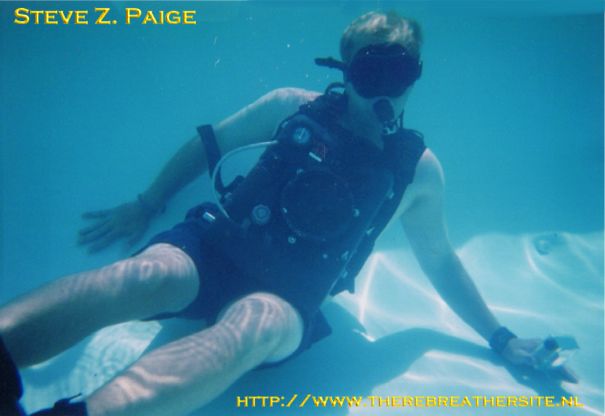

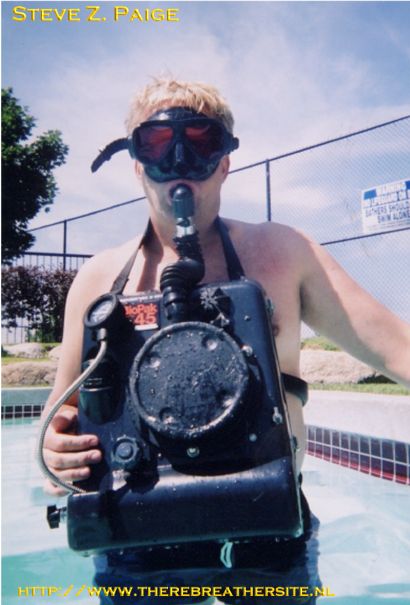

UW testing
Great breather, very silent long dives..
The counterlung is direct placed against the divers lungs. WOB is reduced to a minimum.

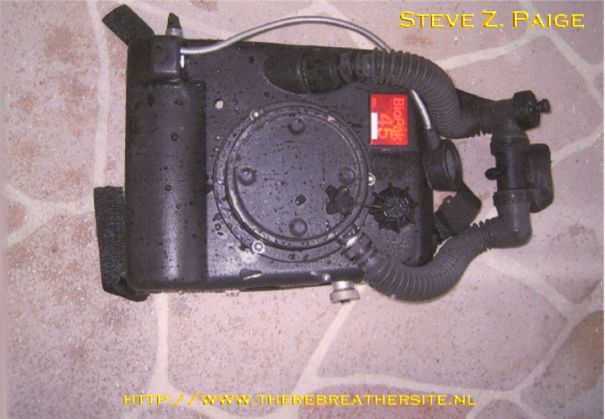

Finished product
Maximum depth 6 meter. DT ~4 hours depending on bottle size

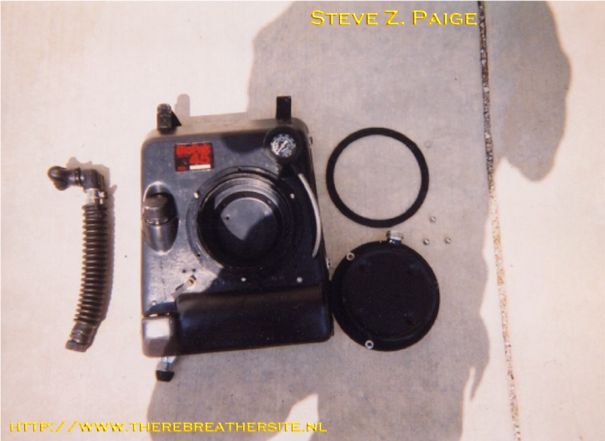

The inhalation hose plugged and the rebreather transformed to a pendulum system.

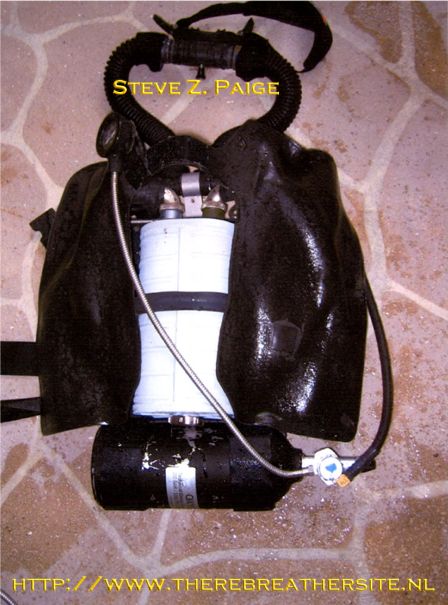

One of Steve's other projects, a mix of parts from 5 rebreathers, resulting in a fine
working oxygen rebreather. Split counter lungs, IDA71 scrubber, LAR 5
mouthpiece....
